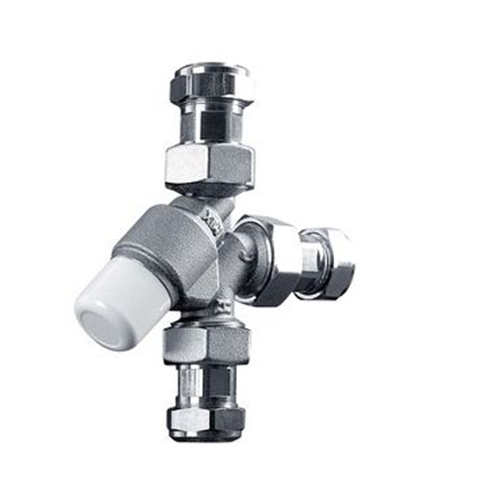

Intamix 'L' Mix Thermostatic Blending Valve - 22mm (TMV3)
A TMV2 failsafe thermostatic mixing valve that provides blended, premixed water at a safe anti scald temperature. The 'L' shaped design is particularly suitable for retro fitting and limited access spaces eg under a bath.

• TMV3 Scheme approved
22mm  size
• The spacesaving design suits retro fitting and hard to access spaces eg under the bath
• Suitable for all types of bathrooms  or showers

Safety Features
Automatic shut off  if hot or cold supplies fail
Temperature stability to +/- 2 degrees


Technical Information
15mm inlet and outlet connections
Temp adjustment range: 30-50degrees C
Temperature stability: +/- 2 degrees C
Max inlet temperature: 85 degrees C
Max operating pressure: 10 bar
Min operating pressure: 0.2 bar
Size: 160mm (h) x 134mm

Approvals & Compliances

UK Mainland Delivery

Standard Delivery £4.25
Standard Delivery Orders over £150 FREE
Guaranteed Saturday Morning £35

UK Highlands & Islands

Channel Islands, Scottish Highlands & Islands, Isle of Wight £19.95
Northern Ireland £19.95

For more information on all of our delivery options, please see our detailed Delivery Information page.

SKU:  INT-60011CP

Intamix 'L' Mix Thermostatic Blending Valve - 22mm (TMV3)

Our Price:  £128.60
(Inc. 20% VAT)



In stock
