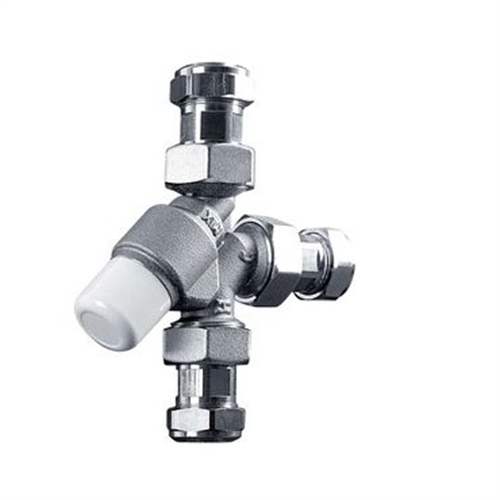

Intamix 'L' Mix Thermostatic Blending Valve - 15mm (TMV2)

A TMV2 failsafe thermostatic mixing valve that provides blended, premixed water at a safe anti scald temperature. The 'L' shaped design is particularly suitable for retro fitting and limited access spaces eg under a bath.

• TMV2 Scheme approved

• 15mm  size

• The spacesaving design suits retro fitting and hard to access spaces eg under the bath

• Suitable for all types of bathrooms  or showers

Automatic shut off  if hot or cold supplies fail

Temperature stability to +/- 2 degrees



15mm inlet and outlet connections

Temp adjustment range: 30-50degrees C

Temperature stability: +/- 2 degrees C

Max inlet temperature: 85 degrees C

Max operating pressure: 10 bar

Min operating pressure: 0.2 bar

Size: 160mm (h) x 134mm

WRAS

TMV 2

Buildcert

NHS D08
